TECHNICAL DATA
- Pressure range : 0-16 bar
- Temperature range : 0 to 200 deg. C
- Vacuum resistance: Full vacuum
- Face to face : ANSI B16.10 narrow
- Flange drilling :ANSI B16.42 / B16.5-150#
- options : DIN PN 10/16
SALIENT FEATURES

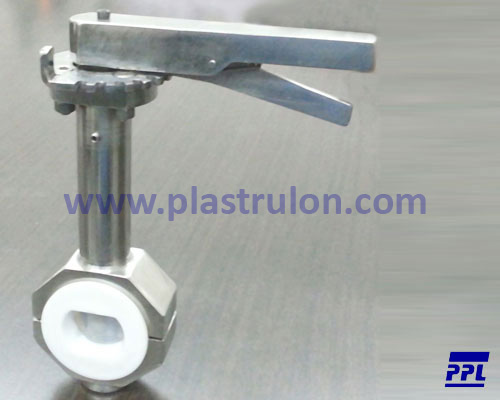

- Available in Wafer type or Lug Type design.
- One piece disc-stem design prevents any disc-stem hysteresis andguarantees accurate positioning of disc in open/close condition.
- Disc, Stem are made in investment casting.
- Choice of four different fluoroplastic Disc lining materials toprovide corrosion and temperature resistance for almost allapplications
- Blow-out proof stem.
- Extra thick locked-in-lining for high vacuum rating (min. 3mm).
- Blow-out proof stem.
- Unique packing system. Self adjusting with permanent loading(Stainless steel Belleville springs)
- Integrated Actuator mounting : For applications requiringautomatic actuation and for manual actuation of large size Valvesdirect mounting of ISO 5211 compliant quarter tum actuator.
- External protection against corrosion with epoxy coating,stainless steel fasteners.
OPTIONAL FEATURES
- Lockable handles: For applications which require protectionagainstinadvertent opening or closing of the levers which can be locked usingpadlocks can be provided
- Extended Stem: For applications requiring insulation of the pipeline orfor ease of operation, the valves can be supplied with an extendedstem, along with an ISO 5211 actuator mounting flange.
