TECHNICAL DATA

  • Pressure range: 0-16 bar
  • Temperature range: 0 to 200 deg.C
  • vacuum Resistance: Full vacuum
  • Face to Face: ANSI B16.10
  • Flange drilling : ANSI B16.42/B16.5-150#,
  • Options: ANSI B16.42/B16.5-300#, DIN PN 10/16

SALIENT FEATURES

  • Choice of four fluoroplastic lining materials to provide corrosion and temperature resistance for almost all applications
  • Extra thick locked-in-lining for high vacuum rating(minimum 3mm).
  • External protection against corrosion with epoxy coating, stainless steel fasteners.
  • Plastic and protectors on each flange to protect the liner faces.

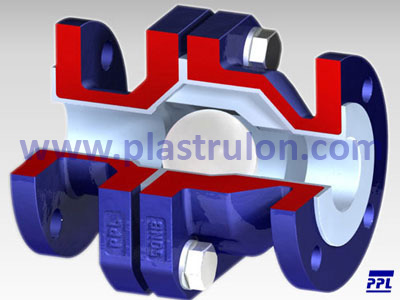

  • BALL CHECK VALVE:
    • Available with solid PTFE or lined Ball.
    • Guided Ball for better sealling in horizonatal position
    • Gravity operated
  • SWING CHECK VALVE
    • Available with VITON, replaceable seal
    • Inclined disc for better sealling in horizontal position.
    • Gravity operated

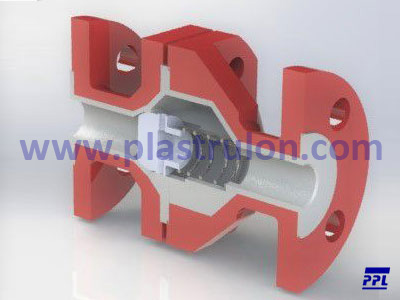

  • PISTON CHECK VALVE
    • Available with solid PTFE piston
    • Spring operated to provide positive sealing even in horizontal flow position.
  • HORIZONTAL POPPET CHECK VALVE
    • Avaiable with solid PTFE or lined poppet.
    • For use in horizontal flow condition
    • Gravity operated
